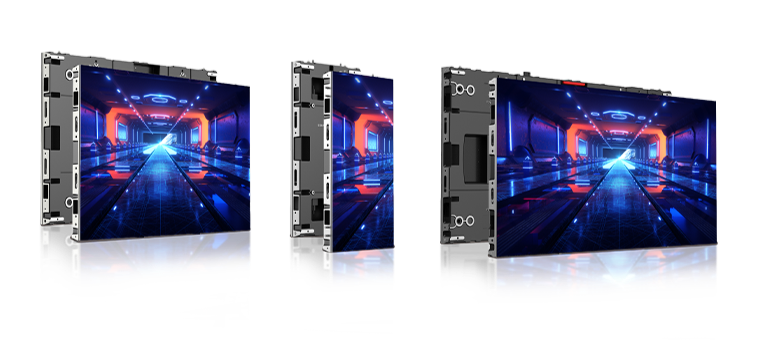

BIM Plus-x Series

The BIM Plus-X series is a indoor fixed LED screen that is stable, versatile, flexible and creative. With attention to detail, the one-piece molding die-cast panel is crafted with more ergonomic details to elevate user experience.

Thinner, lighter, faster, better visuals, more practical & ergonomic, this series allows for more creative display shapes thanks to it’s mixed-splicing enabled with the BIM Plus & BIM MIN Series.

Comes in a wide-range of pixel pitch options to fit in your space and needs.

X-Generation Indoor Commercial LED Display

Product Overview

Ultra-thin 42mm panels that blend seamlessly with walls
Lightweight 17.5 lbs panels reduce installation and transport effort
Multiple size options enable staggered splicing for creative layouts
Supports 90° rotation without color distortion
Curved splicing down to a 2.8 m minimum radius
Mixed splicing with BIM MIN and BIM Plus-X for versatile designs
Optional wireless connection simplifies maintenance and reduces disconnection risk
Triple-lock system ensures precise flatness for flawless display alignment.

“X”tremely Considerate -- Detail Matters

The one-piece molding die-cast panel is crafted with more ergonomic details to elevate user experience.

“X”tremely Stable -- Wireless Connection, Dual Backup

Wireless module connectivity grants higher stability during prolonged use; Dual backup of receiving card and power supply is optional to prevent sudden disruptions and maintain uninterrupted display.

“X”tremely Versatile -- Multi-Scenario Application

Allowing diverse installation including direct wall mounting, stacking and hanging for different environments, BIM Plus-X also offers high-brightness models to fit in semi-indoor application like shop windows and storefronts.

“X”tremely Flexible -- 90° Rotation

Thanks to the center-symmetrical design of the modules, BIM Plus-X allows 90° rotated assembly to stagger for more installation without colour cast.

“X”tremely Creative -- 45° Bevels

Special 45° bevel-cut panels with multiple sized panels unlock more flexible installations like L-shape, pillar, hexahedron, etc.

“X”tremely Ingenious -- Mixed Splicing at Will

BIM Plus-X enables to splice with BIM MIN & BIM Plus and share modules with BIM Plus for creative shape splicing like AV Awards wining display -- “THE WOW” 3D display.

Product Specifications of BIM PLUS-T/TX Series Models




            BIM Plus-X 1.5
            BIM Plus-X 1.9
            BIM Plus-X 2.6
            BIM Plus-X 3.9
            BIM Plus-X 5.2



            Pixel Pitch (mm)

            1.9
            2.6
            1.9
            2.6
            2.6


            Panel Size W*H*D (mm)
            500*1000*43 | 750*250*43 | 500*250*43
            500*1000*43 | 750*250*43 | 500*250*43
            500*1000*45 | 750*250*45 | 500*250*45
            500*1000*45 | 750*250*45 | 500*250*45
            2.6


            Panel Resolution (W*H)
            128*128
            96*96
            128*128
            96*96
            2.6


            Panel Weight (kg/pc)
            10.5 | 5 | 3.5
            10.5| 5 | 3.5
            12.5 | 6 | 4
            12.5 | 6 | 4
            2.6


            Brightness (Nits)
            800/3500
            800/3500
            800/3500
            800/3500
            2.6


            Panel Material
            Die-Casting Aluminium
            Die-Casting Aluminium
            Die-Casting Aluminium
            Die-Casting Aluminium
            Die-Casting Aluminium


            Serviceability
            Front
            Front
            Front
            Front
            Front
