BIM MAX Series

LianTronics products can be found installed in a multitude of places: covering critical mission, municipal engineering, commercial property, exhibition hall, public security organs, transportation hub, VR education, broadcasting studios, video conference rooms, advertising media, etc.

The BIM MAX Series features indoor, small pixel-pitch LED panels for close proximity viewing, with notable ease of maintenance.

16:9 Indoor Commercial LED Display

Friendly 16:9 Cabinet Designed in 16:9 aspect ratio, BIM MAX Series is ultra friendly to assemble LED walls in 2K, 4K, 8K, etc.

Slim & Lightweight Design Ultra-thin cabinet with 20Kg/㎡ only makes more effortless installation & maintenance.

Bigger Sizes, Less Costs With bigger-sized cabinets, the BIM MAX Series facilitates more cost-effective solutions with faster installation to save your time and expenses.

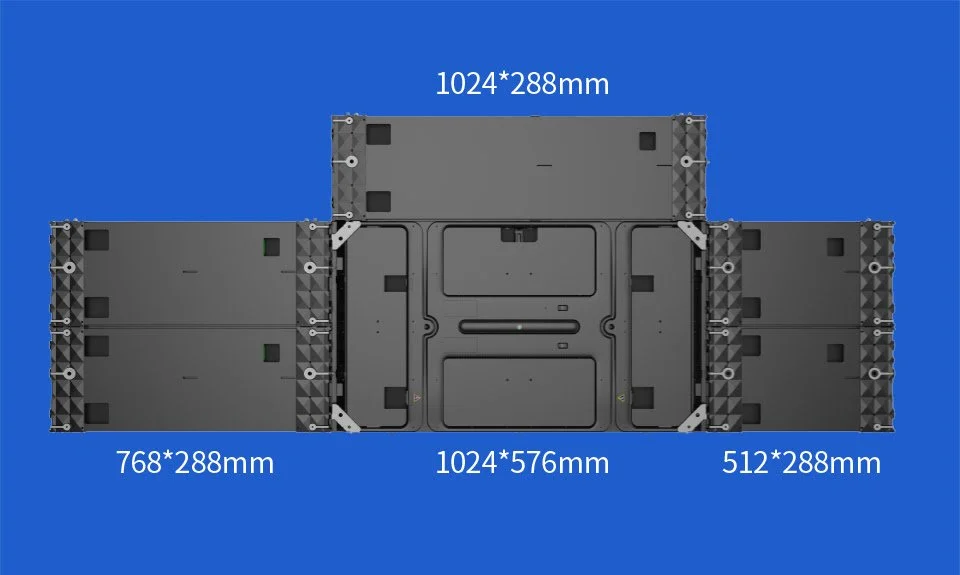

Mixed Splicing, Flexible Installation BIM MAX Series and BIM Pro Series share common modules and can be mixed and spliced together.

Bendable Modules, Creative Splicing BIM MAX Series supports bendable modules for creative curved splicing.

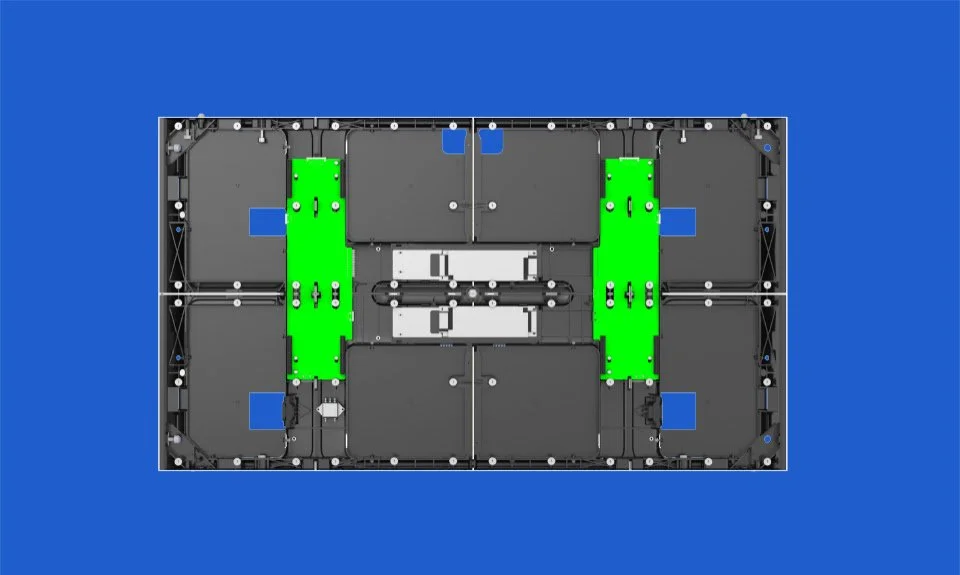

Wireless Connection, Stable Operation BIM MAX Series simplifies the inner structure with a wireless connection for higher-efficiency maintenance and less disconnection risk.

Product Overview

Ultra-thin and ultra-light, efficient for maintenance and installation;
Fully wall-mounted;
Front maintenance;
Automatically imports data when it is replaced

Product Specifications of BIM MAX Series Models




            BIM MAX 1.6
            BIM MAX 1.9
            BIM MAX 2.6
            BIM MAX 4




Pixel Pitch (mm)
            1.6
            1.9
            2.6
            4


            Panel Size (mm)
            1024*576*44.5
            1024*576*44.5
            1024*576*44.5
            1024*576*44.5


            Panel Resolution (Pixel)
            640*360
            520*290
            384*216
            256*144


            Panel Weight (Kg/pc)
            11.6
            11.6
            11.6
            11.6


            Brightness (Nits)
            700~800
            700~800
            700~800
            800~900


             Panel Material
            Die-casting aluminum
            Die-casting aluminum
            Die-casting aluminum
            Die-casting aluminum


            Serviceability
            Front
            Front
            Front
            Front
