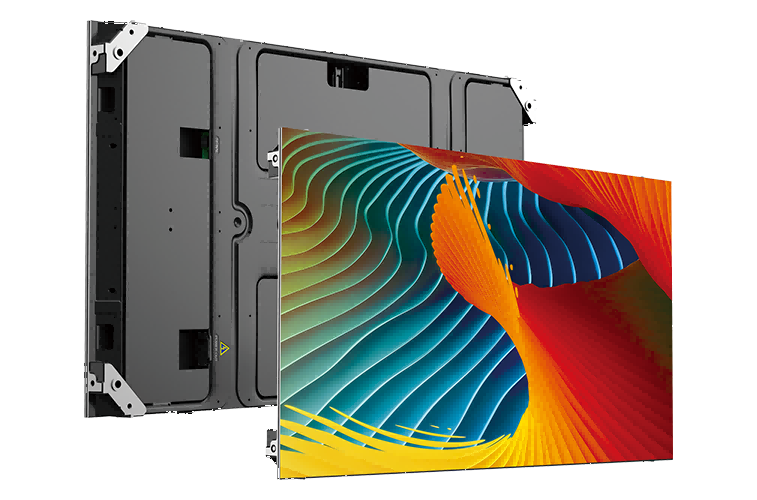

BIM MAX Series

Fine-pitch Indoor LED Video Wall

Bigger Size, Faster Assembly

16:9 Indoor Commercial LED Display

Product Overview

Ultra-thin and ultra-light, efficient for maintenance and installation;
Fully wall-mounted;
Front maintenance;
Automatically imports data when it is replaced

Friendly 16:9 Cabinet
Designed in 16:9 aspect ratio, BIM MAX Series is ultra friendly to assemble LED walls in 2K, 4K, 8K, etc. — Friendly 16:9 Cabinet Designed in 16:9 aspect ratio, BIM MAX Series is ultra friendly to assemble LED walls in 2K, 4K, 8K, etc.

Slim & Lightweight Design
Ultra-thin cabinet with 20Kg/㎡ only makes more effortless installation & maintenance. — Slim & Lightweight Design Ultra-thin cabinet with 20Kg/㎡ only makes more effortless installation & maintenance.

Bigger Sizes, Less Costs
With bigger-sized cabinets, the BIM MAX Series facilitates more cost-effective solutions with faster installation to save your time and expenses. — Bigger Sizes, Less Costs With bigger-sized cabinets, the BIM MAX Series facilitates more cost-effective solutions with faster installation to save your time and expenses.

Mixed Splicing, Flexible Installation
BIM MAX Series and BIM Pro Series share common modules and can be mixed and spliced together. — Mixed Splicing, Flexible Installation BIM MAX Series and BIM Pro Series share common modules and can be mixed and spliced together.

Bendable Modules, Creative Splicing
BIM MAX Series supports bendable modules for creative curved splicing. — Bendable Modules, Creative Splicing BIM MAX Series supports bendable modules for creative curved splicing.

Wireless Connection, Stable Operation
BIM MAX Series simplifies the inner structure with a wireless connection for higher-efficiency maintenance and less disconnection risk. — Wireless Connection, Stable Operation BIM MAX Series simplifies the inner structure with a wireless connection for higher-efficiency maintenance and less disconnection risk.

Product Specifications of BIM MAX Series Models




            BIM MAX 1.6
            BIM MAX 1.9
            BIM MAX 2.6
            BIM MAX 4




Pixel Pitch (mm)
            1.6
            1.9
            2.6
            4


            Panel Size (mm)
            1024*576*44.5
            1024*576*44.5
            1024*576*44.5
            1024*576*44.5


            Panel Resolution (Pixel)
            640*360
            520*290
            384*216
            256*144


            Panel Weight (Kg/pc)
            11.6
            11.6
            11.6
            11.6


            Brightness (Nits)
            700~800
            700~800
            700~800
            800~900


             Panel Material
            Die-casting aluminum
            Die-casting aluminum
            Die-casting aluminum
            Die-casting aluminum


            Serviceability
            Front
            Front
            Front
            Front


Fine pitch, Indoor LED products

BIM MAX Series

Golden ratio 16:9 Indoor Commercial LED Display

View Product
BIM MIN Series

Curved Cabinet featuring Indoor Naked-Eye 3D LED Display

View Product
BIM Plus Series

Ultra-thin & Sleek Indoor Fixed LED Display

View Product
BIM Plus-T/TX

Indoor Commercial Dual-side LED Display

View Product

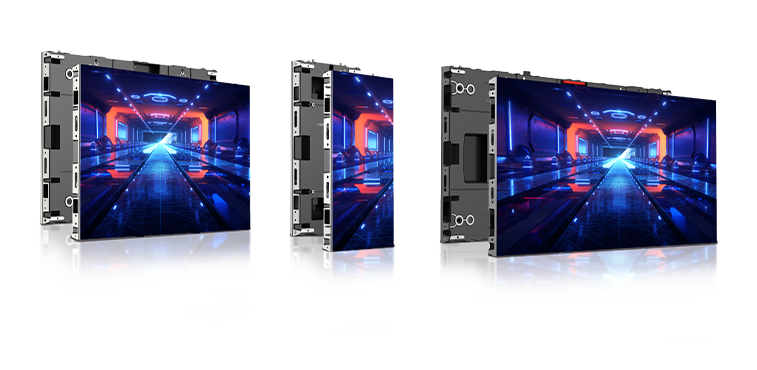

BIM Plus-X Series

X-Generation Indoor Commercial LED Display

Click Here

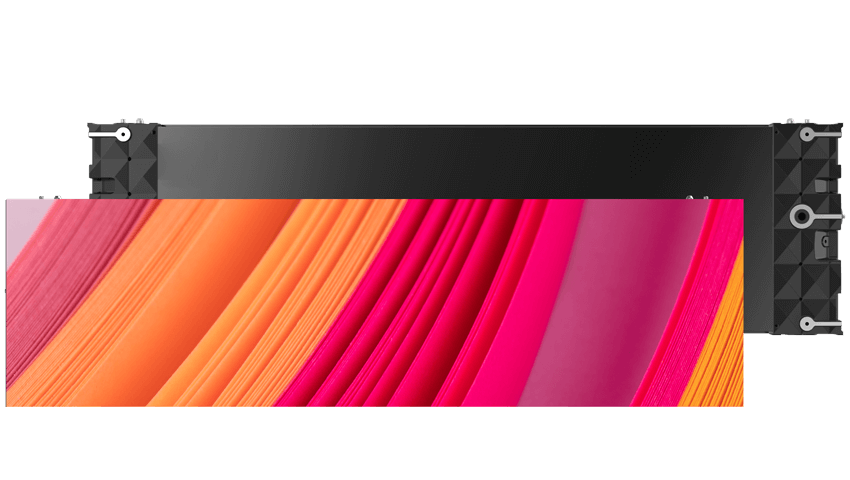

BIM PRO Series
